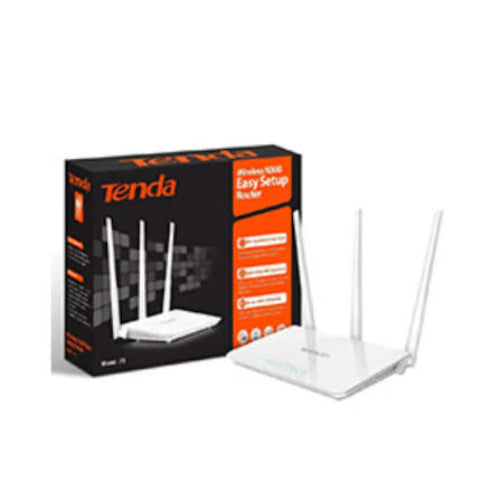

Tenda F3 300Mbps Wireless Router with 3 Antennas

Product Overview

The Tenda F3 is a 300Mbps wireless router designed for everyday home networking. It provides 2.4GHz WiFi using IEEE 802.11b/g/n and supports wireless data rates up to 300Mbps.

Three external 5dBi antennas help provide wireless coverage around the home. The router also supports Wireless Router, Universal Repeater, WISP and AP modes, giving users practical options for different network setups.

With one 10/100Mbps WAN port and three 10/100Mbps LAN ports, the Tenda F3 can connect wired devices such as computers, smart TVs and other network equipment.

Technical Specifications

Specification	Details
Brand	Tenda
Model	F3
Product Type	300Mbps Wireless Router
Wireless Standard	IEEE 802.11b/g/n
Wireless Frequency	2.4GHz
Wireless Data Rate	Up to 300Mbps
WAN Port	1 × 10/100Mbps
LAN Ports	3 × 10/100Mbps
Antennas	3 × 5dBi external antennas
Operating Modes	Wireless Router, Universal Repeater, WISP, AP
Wireless Security	WPA, WPA2, WPA PSK, WPA2 PSK
Parental Control	Client Filter, Time Limit
Bandwidth Control	Supported
Power Supply	DC 9V 0.6A
Dimensions	185.6 × 118.4 × 31.2mm
Package Contents	Router, power adapter, installation guide, Ethernet cable

Specifications are based on Tenda's official F3 documentation.

Why Buy This Product?

300Mbps Wireless Connectivity
The F3 provides wireless data rates up to 300Mbps over 2.4GHz for everyday browsing, streaming, online communication and other common internet activities.

Three External 5dBi Antennas
Three external antennas are designed to help provide wider wireless coverage around the home.

Flexible Network Modes
Wireless Router, Universal Repeater, WISP and AP modes allow the router to be used in different network configurations.

Network Management Controls
Bandwidth control, client filtering and time limit functions help users manage connected devices and network usage.

Practical Home Networking Value
The F3 combines wireless connectivity, wired ports and multiple operating modes in one straightforward home networking solution.

Key Features

300Mbps 2.4GHz WiFi

Supports wireless data rates up to 300Mbps using IEEE 802.11b/g/n technology for everyday home internet use.

Three External 5dBi Antennas

The three external antennas help distribute the wireless signal around the home and provide a practical coverage solution.

Four Operating Modes

Wireless Router, Universal Repeater, WISP and AP modes provide flexibility for different network requirements.

Bandwidth Control

Bandwidth control helps manage network usage between connected devices and can help reduce unnecessary congestion.

Parental Control

Client filtering and time limit functions provide additional control over connected devices and internet access.

Easy Network Setup

The router includes a simple web based configuration interface for setting up the network and adjusting available settings.

Best For

This product is best for:

• Home users who need basic 2.4GHz wireless networking.
• Families who need device and internet access controls.
• Students who need an affordable home router for everyday connectivity.
• Users who need a router with repeater, WISP or access point functionality.
• Small home networks using 10/100Mbps wired connections.

Installation Guide

Step 1: Prepare the Connection

Place the router in a suitable location and connect the supplied power adapter. Prepare the Ethernet cable from your internet source.

Step 2: Connect and Configure

Connect the internet source to the WAN port. Connect a computer or other wired device to a LAN port if required. Open the router setup interface and follow the configuration instructions.

Step 3: Test the Network

After configuration, connect your devices to the wireless network or LAN ports. Check internet access and confirm that the connection is working correctly.

Tenda's documentation identifies 192.168.0.1 as the setup address for the F3 in its setup guidance.

Frequently Asked Questions

Is the Tenda F3 a 5GHz router?

No. The Tenda F3 operates on the 2.4GHz band and supports IEEE 802.11b/g/n wireless standards.

What is the maximum wireless speed of the Tenda F3?

The F3 supports wireless data rates up to 300Mbps under the specified conditions.

How many Ethernet ports does the Tenda F3 have?

It has one 10/100Mbps WAN port and three 10/100Mbps LAN ports.

Does the Tenda F3 support repeater mode?

Yes. The F3 supports Universal Repeater mode.

Does the Tenda F3 support WISP mode?

Yes. WISP mode is listed among the supported operating modes.

Does the Tenda F3 have parental controls?

Yes. Tenda lists client filtering and time limit functions under parental control.

Does the Tenda F3 support Gigabit Ethernet?

No. Both the WAN port and LAN ports are 10/100Mbps.

What comes with the Tenda F3?

The official package contents include the wireless router, power adapter, installation guide and Ethernet cable.

Why Choose This Product?

Reliable Everyday Connectivity
The F3 provides established 2.4GHz wireless technology for common home networking requirements.

Flexible Network Setup
Four operating modes make the router useful for standard routing, wireless repeating, WISP and access point configurations.

Practical Network Management
Bandwidth control, client filtering and time limits provide useful tools for managing connected devices.

Suitable for Basic Home Networks
The F3 is a practical choice when 2.4GHz WiFi and 10/100Mbps Ethernet are sufficient for the network.
