Mercusys MS106LP 6-Port PoE+ Desktop Switch for CCTV Networks

Product Overview

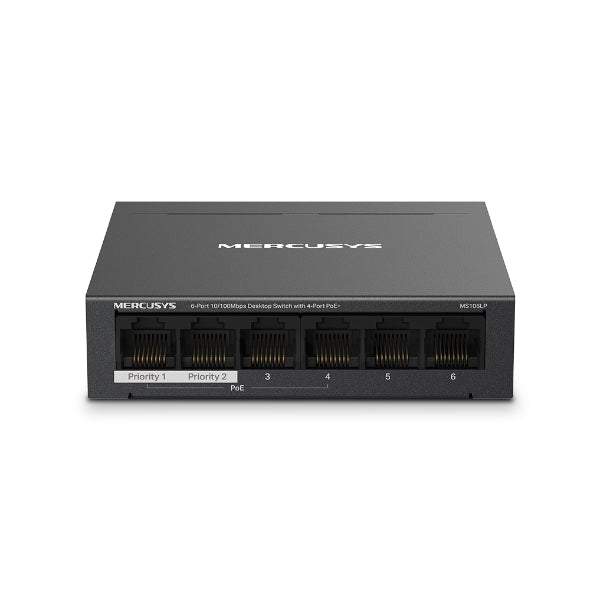

The Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ is designed for small CCTV networks, IP camera setups, access points, IP phones, NVR connections, and compact office networks. It provides 6× 10/100Mbps RJ45 ports, including 4 PoE+ ports that can carry both power and data through a single Ethernet cable.

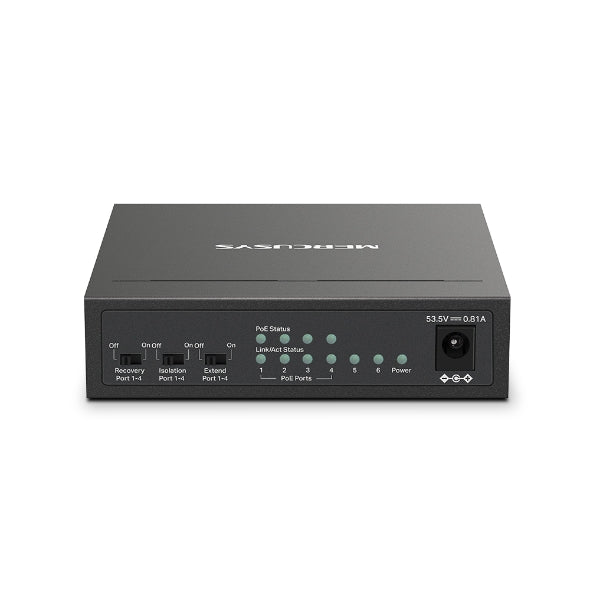

With up to 30W per PoE port and a total 40W PoE power budget, the Mercusys MS106LP PoE+ switch gives installers a simple way to power compatible IEEE 802.3af/at devices without separate power adapters. It also supports Extend Mode up to 250m, Isolation Mode, PoE Auto Recovery, plug-and-play setup, and a durable metal casing for long network life.

Specifications

Key Features

6-Port Fast Ethernet Switching
The Mercusys MS106LP includes 6× 10/100Mbps RJ45 ports for building a compact wired network for cameras, NVRs, access points, office devices, and small business setups.

4 PoE+ Ports for Cleaner Installation
Ports 1–4 support PoE+, allowing compatible devices to receive power and data through one Ethernet cable. This reduces the need for extra adapters and makes CCTV or access point installation cleaner.

40W Total PoE Power Budget
The switch supports up to 30W per PoE port and 40W total PoE power, making it suitable for multiple low-to-medium power PoE devices, depending on their power requirements.

2 Uplink Ports for Router and NVR
When Isolation Mode is enabled, the MS106LP provides 2 uplink ports — one can connect to the internet/router and the other to an NVR, which is useful for surveillance network layouts.

Extend Mode up to 250m
Extend Mode increases PoE transmission distance up to 250m, making this switch useful for longer IP camera cable runs. In Extend Mode, port speed may reduce, and real performance can vary by cable quality and connected device power needs.

Isolation Mode for Security and Stability
With one click, Isolation Mode separates traffic for specific ports, helping reduce broadcast issues and improving stability in camera or office networks.

PoE Auto Recovery
The switch can automatically reboot dropped or unresponsive PoE-powered devices, helping reduce manual checking for IP cameras or access points.

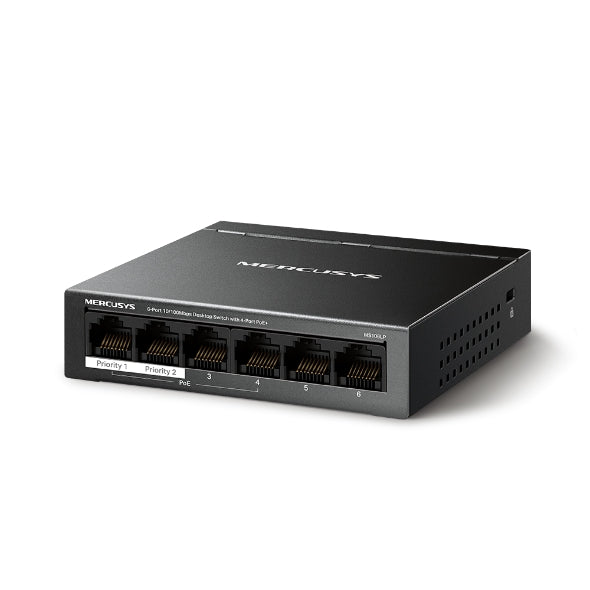

Durable Metal Casing
The metal body helps with heat dissipation and long-term network reliability, while the fanless design keeps operation quiet.

Plug and Play Setup
No complicated configuration is needed. Auto-negotiation and Auto MDI/MDIX help make setup simple and time-saving.

Benefits

The Mercusys MS106LP PoE switch is ideal for users who need a compact PoE solution for small surveillance systems or network expansion. Instead of running separate power cables for every compatible IP camera or access point, the 4 PoE+ ports can deliver both data and power through one Ethernet cable.

For CCTV installers, small shops, offices, homes, and security setups, the MS106LP offers a useful balance of compact size, PoE convenience, long-range mode, traffic isolation, and auto recovery. Its two uplink ports are helpful for connecting both a router and NVR, while the metal casing and silent operation make it suitable for continuous daily use.

Why Buy From dynsol.pk

Buy the MS106LP 6-Port PoE+ Desktop Switch from dynsol.pk for reliable networking products and a smooth online shopping experience. dynsol.pk provides practical tech solutions for CCTV systems, small office networks, IP camera installations, and everyday network expansion.

This switch is a strong option for customers looking for a branded Mercusys PoE+ switch with 4 PoE+ ports, 40W power budget, 250m Extend Mode, PoE Auto Recovery, Isolation Mode, and durable metal construction.

FAQs

Q1: How many ports does the Mercusys MS106LP have?
The MS106LP has 6× 10/100Mbps RJ45 ports, including 4 PoE+ ports.

Q2: Which ports support PoE+?
Ports 1 to 4 support PoE+ and are compatible with IEEE 802.3af/at powered devices.

Q3: What is the PoE power budget of this switch?
The switch supports up to 30W per PoE port and a total PoE budget of 40W. Actual usable power can vary depending on connected devices and conditions.

Q4: Is the MS106LP suitable for CCTV cameras?
Yes. It is suitable for compatible PoE IP cameras, NVR setups, access points, IP phones, and other IEEE 802.3af/at powered devices.

Q5: What does Extend Mode do?
Extend Mode increases PoE transmission distance up to 250m, which helps with longer camera installations. Port speed may reduce in Extend Mode, and actual distance depends on cable quality and power consumption.

Q6: Does the Mercusys MS106LP have Gigabit ports?
No. The MS106LP has 10/100Mbps Fast Ethernet ports, not Gigabit ports.

Q7: What is PoE Auto Recovery?
PoE Auto Recovery detects when a PoE-powered device stops responding for a longer period and automatically reboots it to help restore operation.

Q8: Is configuration required?
No. The switch supports plug-and-play setup with auto-negotiation and Auto MDI/MDIX, so basic use does not require advanced configuration.
