Mercusys MS110P 10-Port PoE+ Desktop Switch for CCTV & Network Setup

Product Overview

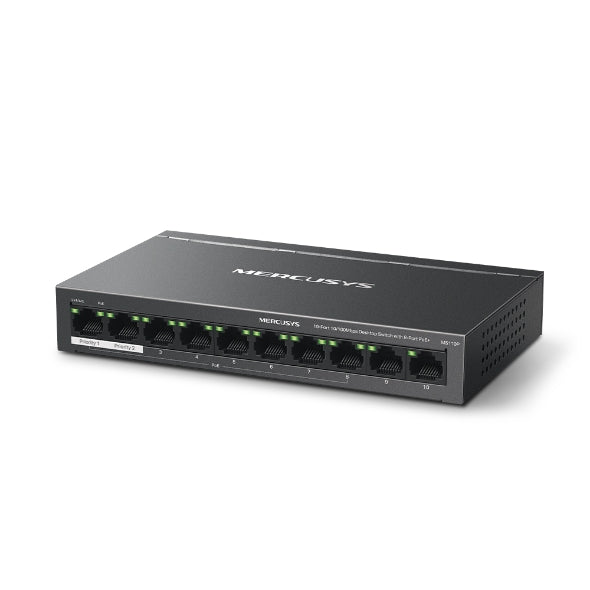

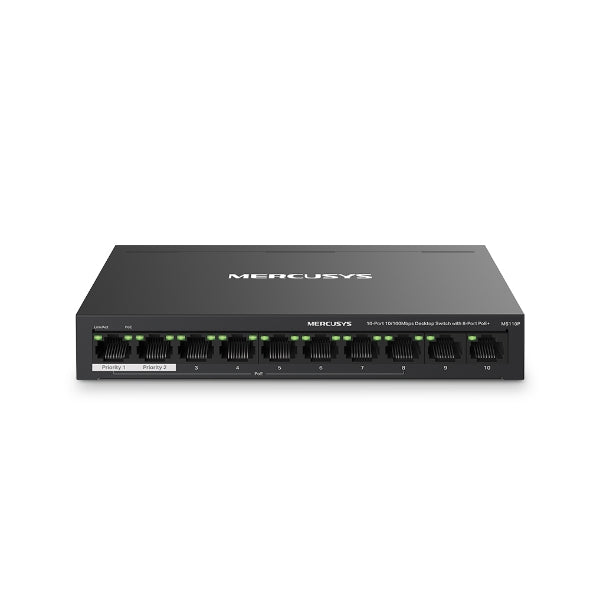

The Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ is designed for simple and reliable network expansion in CCTV systems, small offices, shops, homes, and surveillance setups. It comes with 10× 10/100Mbps RJ45 ports, including 8 PoE+ ports that can transfer both power and data through a single Ethernet cable.

With a total 65W PoE power budget, support for IEEE 802.3af/at powered devices, Extend Mode up to 250m, Isolation Mode, PoE Auto Recovery, and a durable metal casing, the Mercusys MS110P PoE switch is a practical option for IP cameras, access points, IP phones, NVRs, and other compatible network devices.

Specifications

Key Features

10-Port Network Expansion
The Mercusys MS110P gives you 10 Fast Ethernet ports for expanding a wired network, making it useful for CCTV installations, office devices, and small business networking.

8 PoE+ Ports for Power and Data
Ports 1–8 support PoE+, allowing compatible devices to receive both power and data over one Ethernet cable. This helps reduce cable clutter and makes installation cleaner.

65W Total PoE Budget
The switch supports up to 30W per PoE port and a total PoE power budget of 65W, suitable for multiple compatible PoE devices depending on their power requirements.

Extend Mode up to 250m
Extend Mode increases PoE transmission distance up to 250m, making it useful for surveillance camera placement in larger spaces. Actual distance can vary depending on cable quality, device power needs, and environment.

Isolation Mode for Better Stability
Isolation Mode separates traffic for selected ports to improve network stability and security, while providing 2 uplink ports for connecting to the internet and NVR.

PoE Auto Recovery
The MS110P can automatically reboot dropped or unresponsive PoE-powered devices, helping reduce manual maintenance for cameras or access points.

Durable Metal Casing
Its metal body supports better heat dissipation and long-term network stability, making it suitable for daily business and surveillance use.

Plug and Play Setup
No complicated configuration is required. Auto-negotiation and Auto MDI/MDIX make setup quick and beginner-friendly.

Benefits

The Mercusys MS110P PoE+ switch is ideal for users who want to connect IP cameras, access points, IP phones, NVR systems, and wired network devices without using separate power adapters for every PoE-supported device.

For CCTV installers and small business owners, the 8 PoE+ ports help simplify wiring, while the 2 uplink ports make it easier to connect the network to a router and recording device. Extend Mode is especially helpful when cameras need to be installed farther from the main switch.

Its fanless metal design makes the switch quiet and durable, while PoE Auto Recovery helps keep powered devices running with less manual checking.

Why Buy From dynsol.pk ?

Buy the Mercusys MS110P 10-Port PoE+ Desktop Switch from dynsol.pk for reliable networking products and a smooth online shopping experience. dynsol.pk offers practical solutions for CCTV networks, office setups, IP camera systems, and small business connectivity.

This switch is a strong choice for customers who need a branded Mercusys PoE switch with 8 PoE+ ports, 65W power budget, long-range PoE support, metal casing, and easy plug-and-play installation.

FAQs

Q1: How many ports does the Mercusys MS110P have?
The MS110P has 10× 10/100Mbps RJ45 ports, including 8 PoE+ ports.

Q2: Which ports support PoE+?
Ports 1 to 8 support PoE+, while the remaining ports can be used for uplink connections.

Q3: What is the total PoE power budget?
The switch supports a total PoE power budget of 65W, with up to 30W per PoE port. Actual usable power can vary depending on connected devices and conditions.

Q4: Is the MS110P suitable for CCTV cameras?
Yes. It is suitable for compatible PoE IP cameras, NVR setups, access points, IP phones, and other IEEE 802.3af/at powered devices.

Q5: What does Extend Mode do?
Extend Mode increases PoE transmission distance up to 250m, useful for long-distance IP camera installations. Port speed may reduce in Extend Mode, and actual distance depends on cable quality and device power usage.

Q6: Does this switch have Gigabit ports?
No. The Mercusys MS110P has 10/100Mbps Fast Ethernet ports, not Gigabit ports.

Q7: What is PoE Auto Recovery?
PoE Auto Recovery detects dropped or unresponsive PoE-powered devices and automatically reboots them to help restore operation.

Q8: Is configuration required?
No. The MS110P supports plug-and-play setup with auto-negotiation and Auto MDI/MDIX, so no advanced configuration is needed for basic use.
